48V DC Marine Diesel Generator, 6kW and 15kW

6KW 48V DC DIESEL GENERATOR

Our 48V generator provides DC power directly into your battery bank. No need to run a charger and deal with efficiency losses and more components. This system is based on the widely used Yanmar 2YM15 paired with our electric motor system to produce 125 Amps 48V DC power. Features are controlled via our display for more familiar functions by Powerflow Marine.

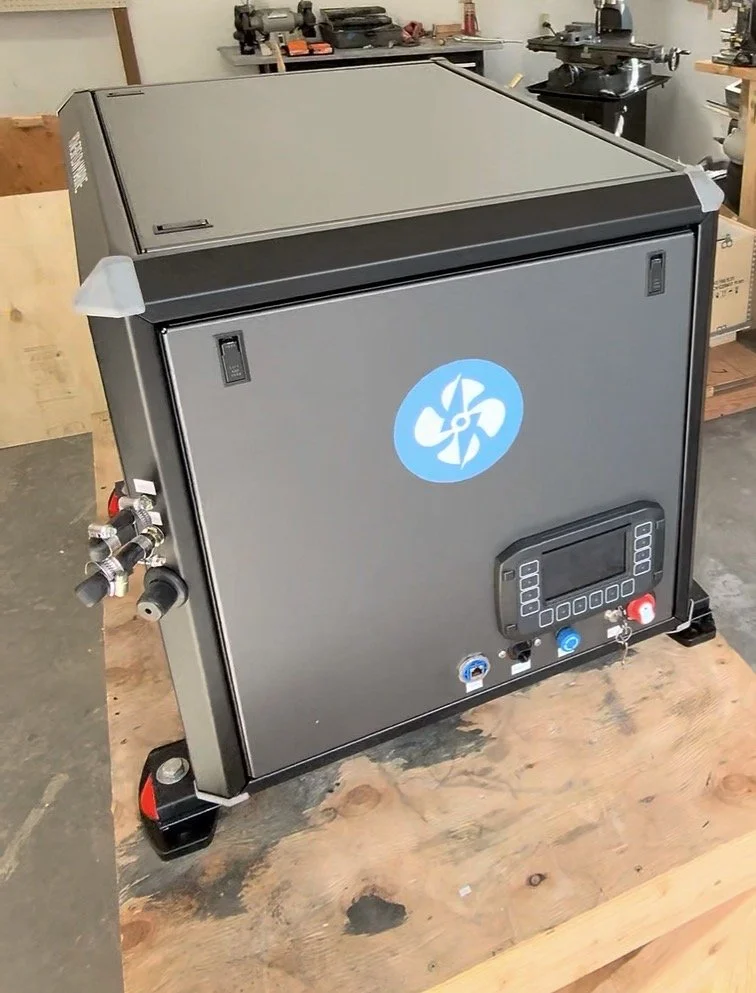

Powerflow Marine 6kW 48V DC marine diesel generator with stainless sound-shield enclosure and integrated display, hand built in the shop

Starting at $24,800

Apply for a Build Slot

DETAILS

> 6kW DC Generator
> 48V
> 0.6 Gal/hour fuel consumption
> Weight: 295lbs
> Stainless steel case
> Sound deadening to 65db at 10’
> Cooling circuit used from motor systems
> Dimensions 25“ H x 26” L x 23” W
> Bulkhead mounted Power Unit

INCLUDES

> Display intergration
> Power Unit
> Cooling for motor in case
> Wiring harness
> Mounting feet

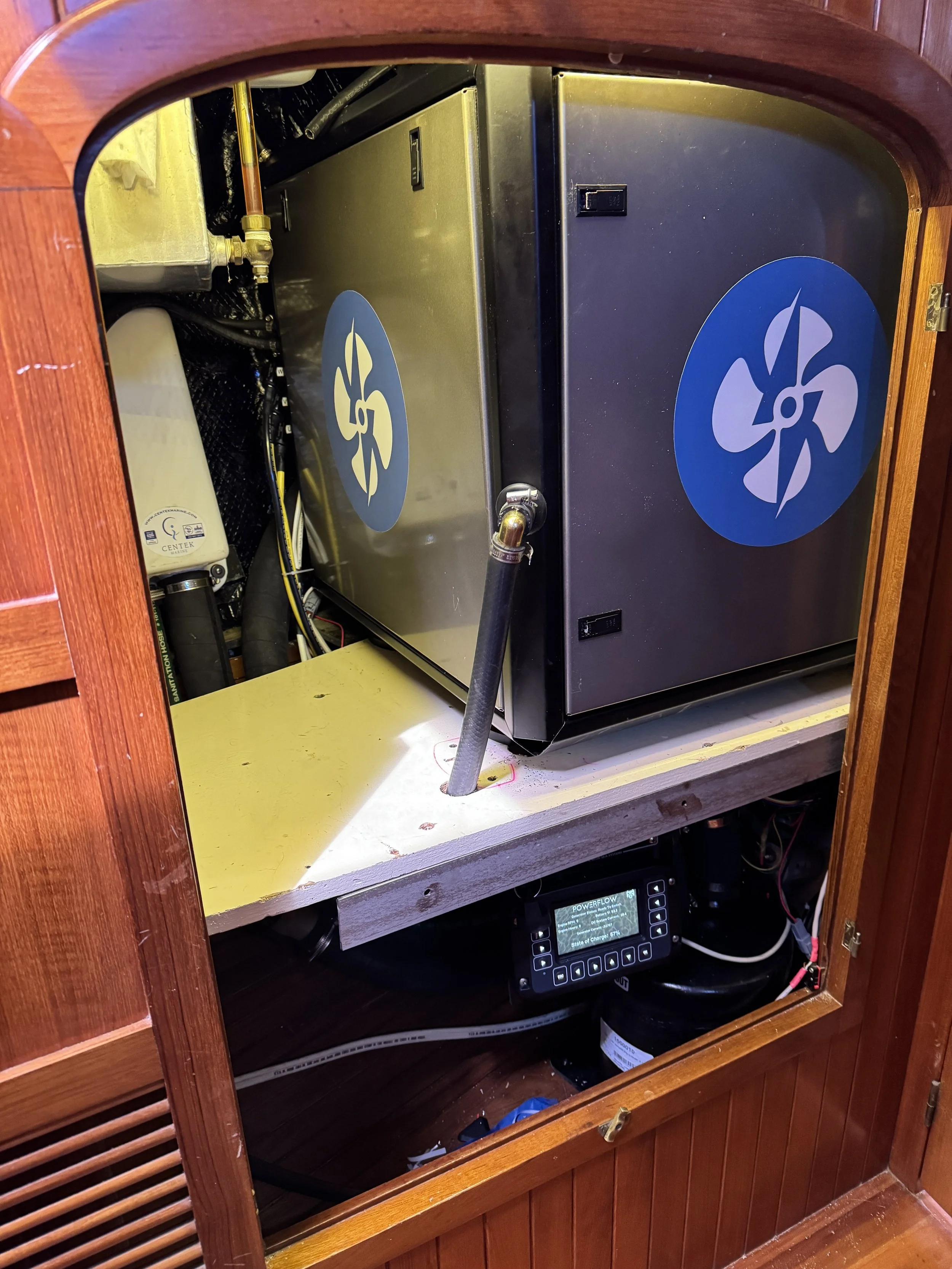

Powerflow Marine 48V DC diesel generator installed in a sailboat engine room, with display panel below

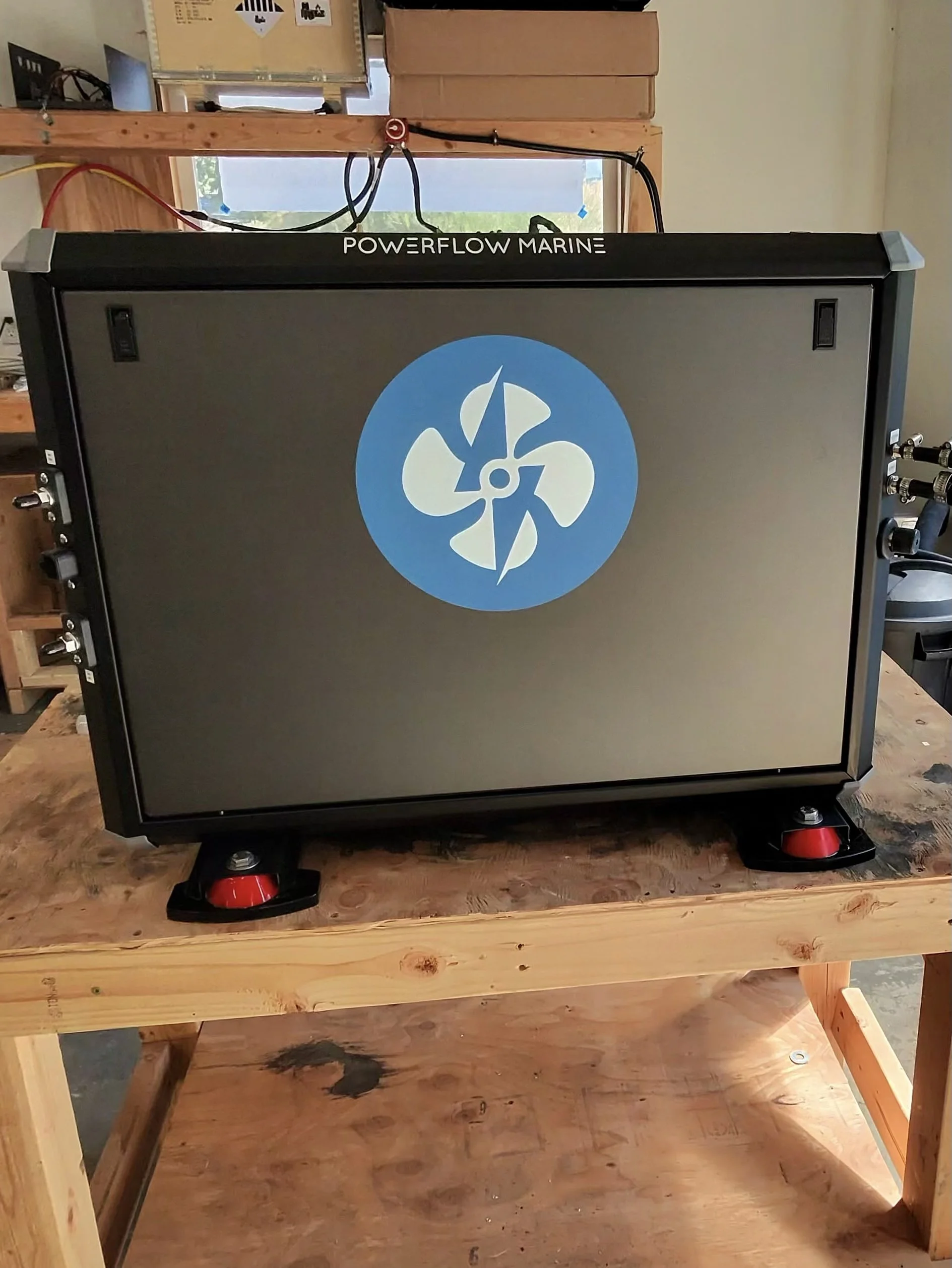

Powerflow Marine 48V DC marine generator, sound-shielded enclosure with anti-vibration mounts, on the shop bench

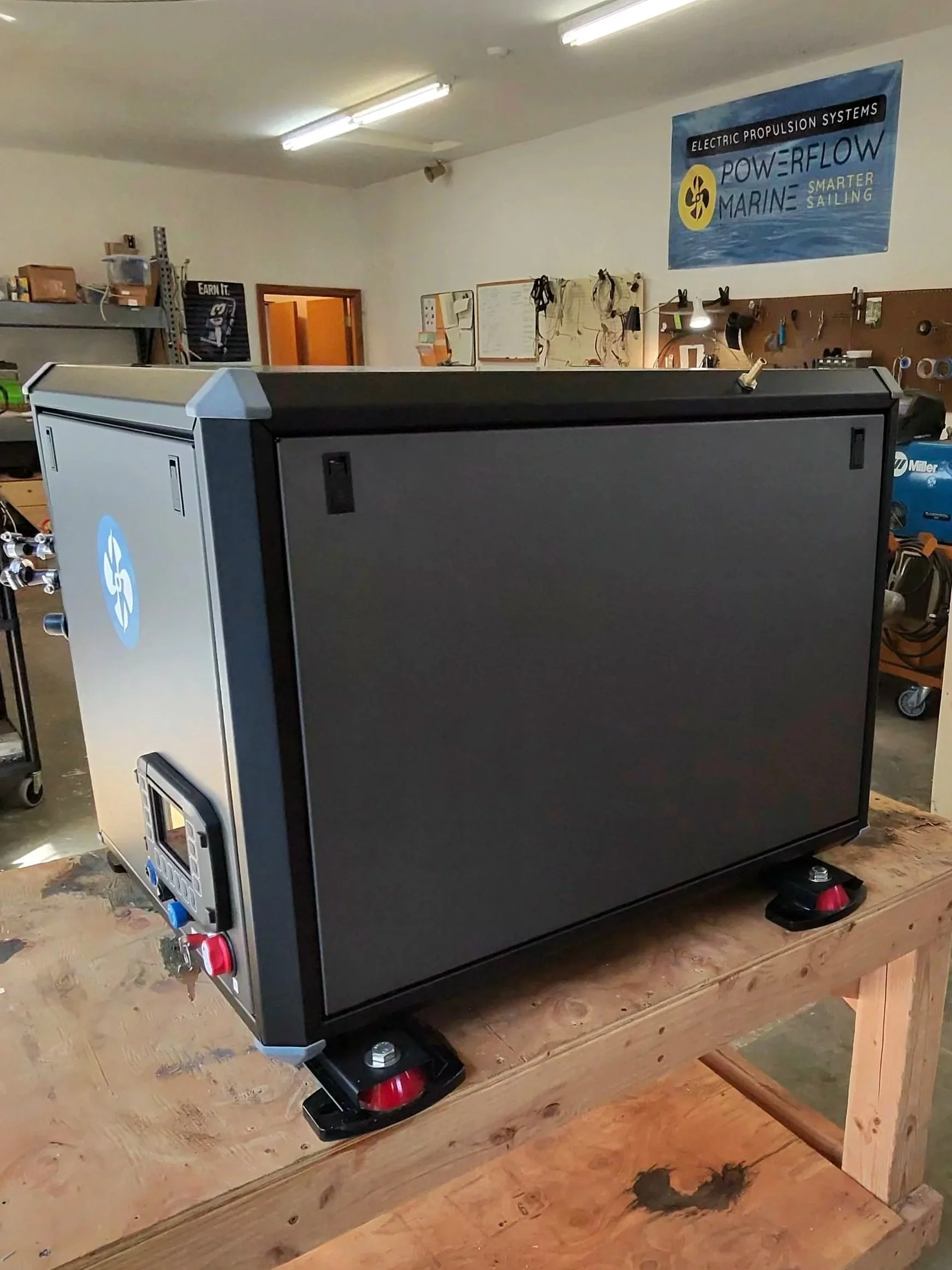

Rear quarter view of the Powerflow Marine 48V DC diesel generator enclosure with service connections

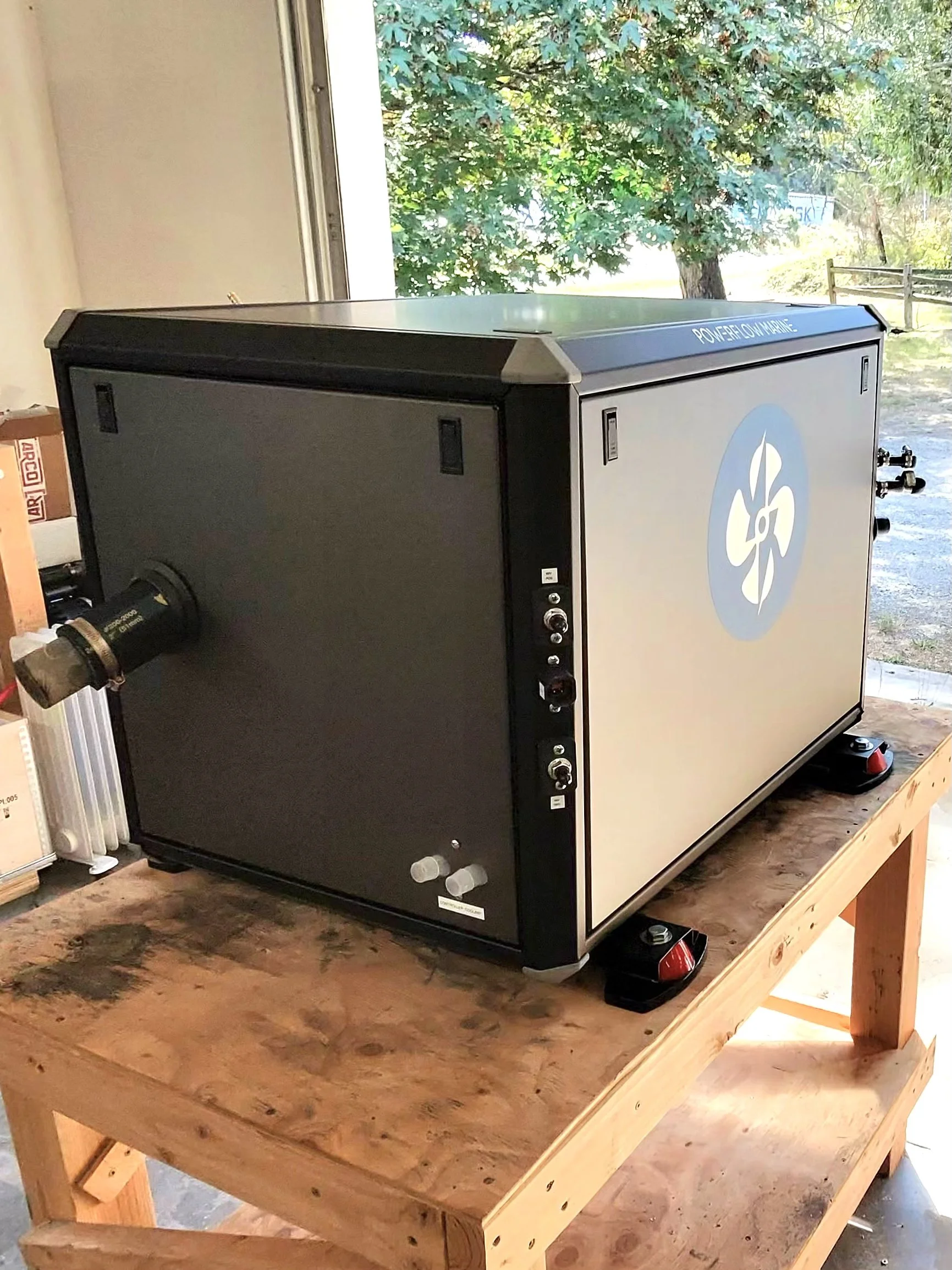

Side view of the Powerflow Marine 48V DC generator showing exhaust outlet and compact enclosure footprint

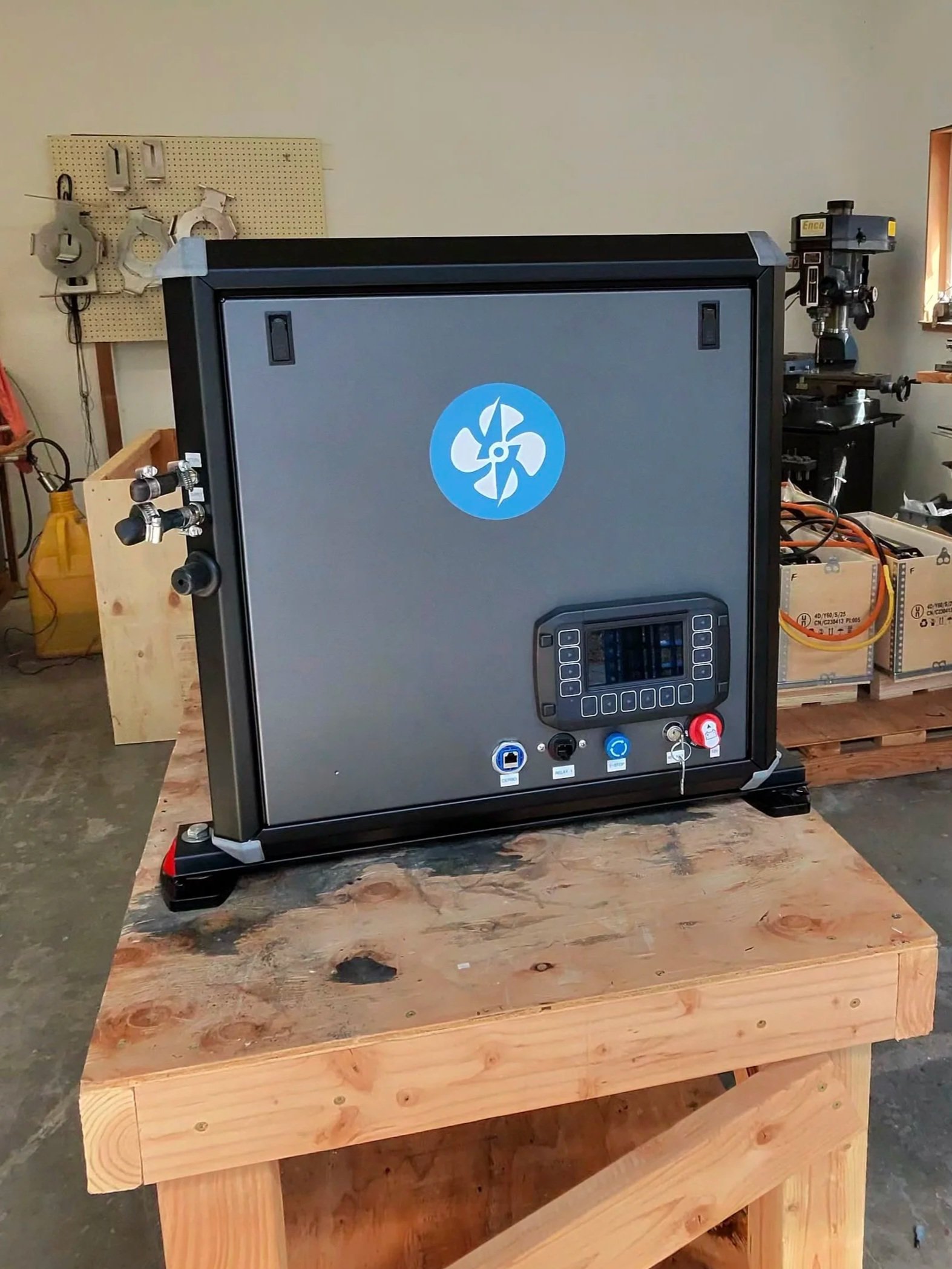

Front control panel of the Powerflow Marine 48V DC generator with integrated display, start controls and E-stop

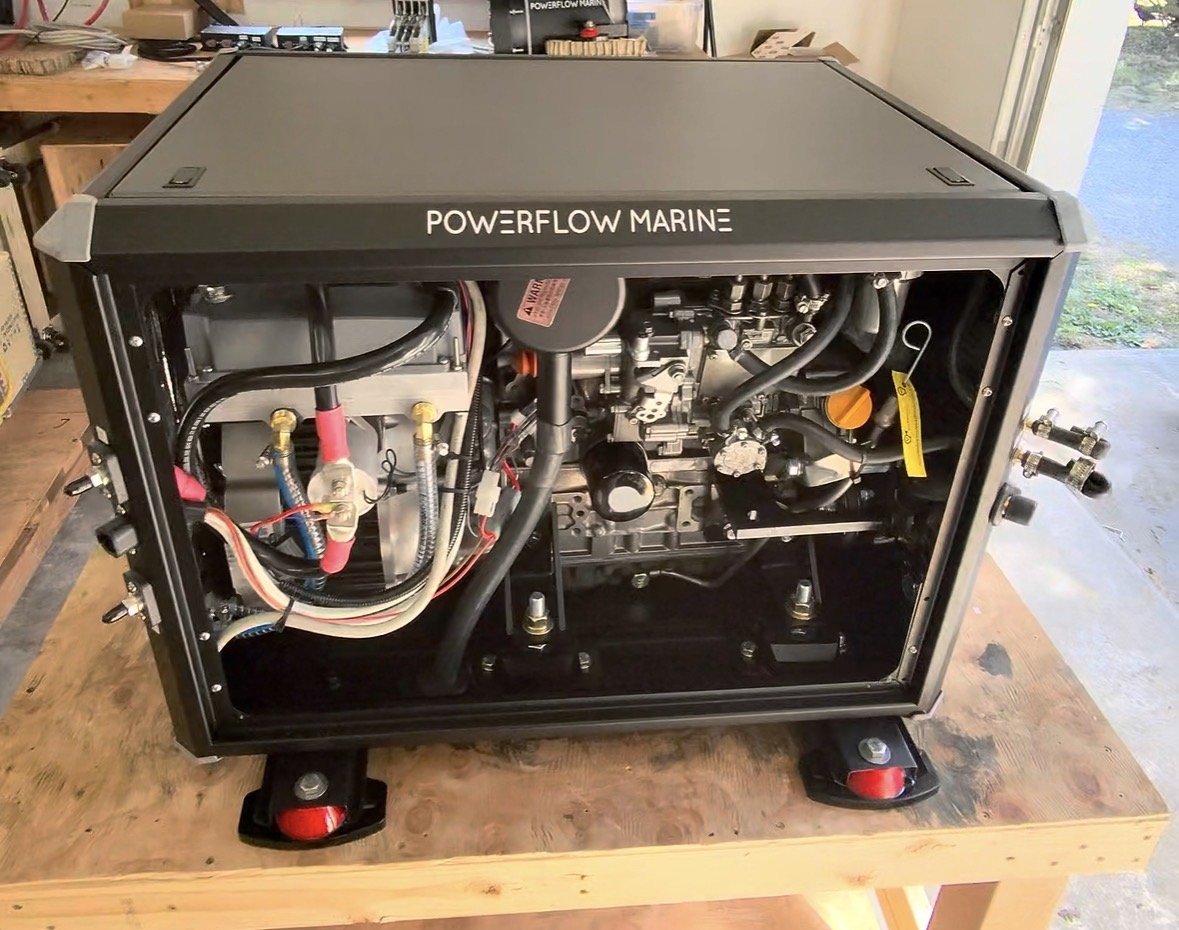

Inside the Powerflow Marine 48V DC diesel generator with service panel open, showing the Yanmar engine and wiring

15KW 48V DC DIESEL GENERATOR

Our 48V generator provides DC power directly into your battery bank. No need to run a charger and deal with efficiency losses and more components. This system is based on the widely used Yanmar 3YM30 paired with our electric motor system to produce 15kW at 48V DC. Features are controlled via our display for more familiar functions by Powerflow Marine.

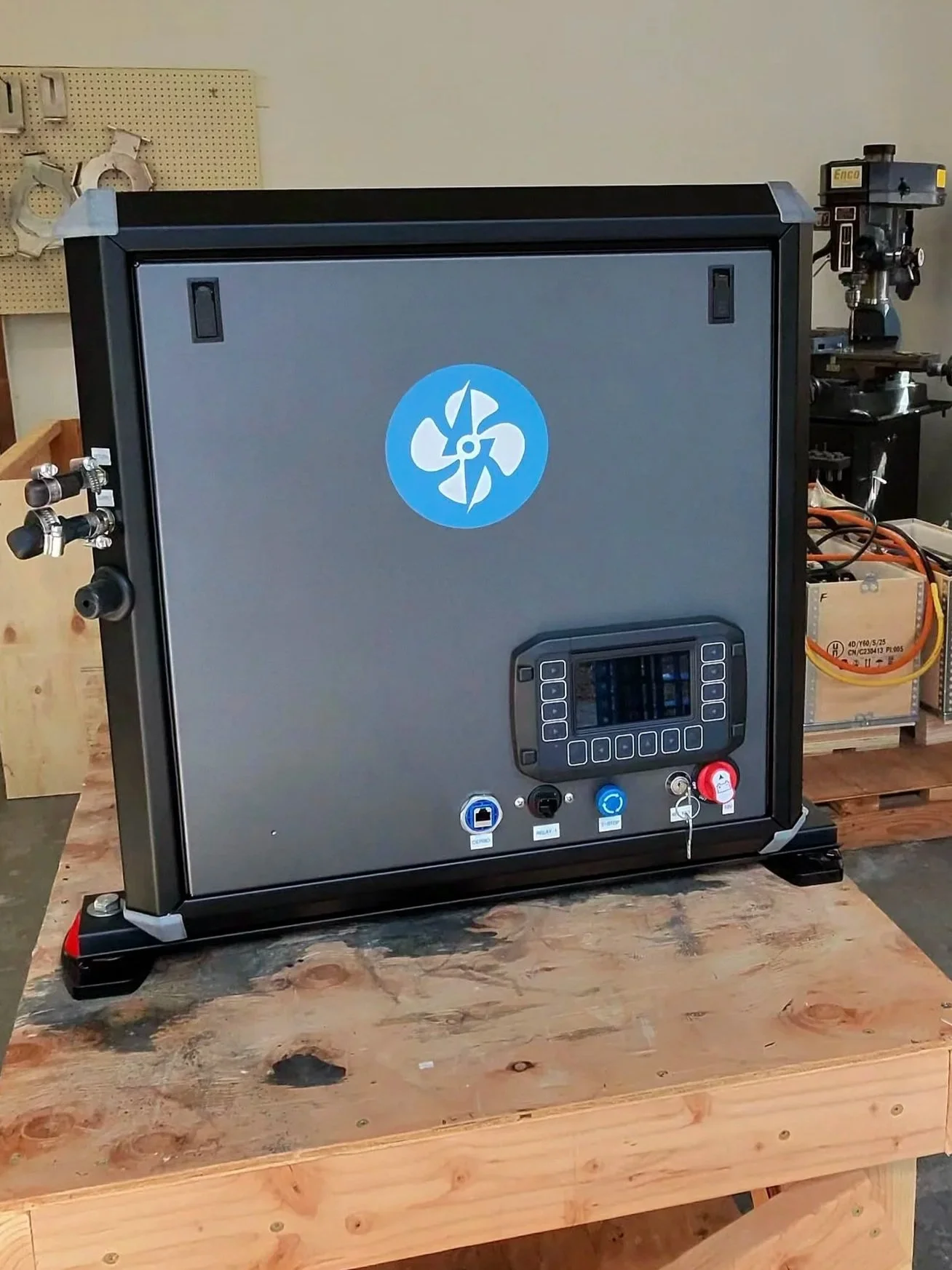

Powerflow Marine 48V DC marine diesel generator control panel with integrated display, built on the Yanmar 3YM30 for the 15kW model

Starting at $26,800

Apply for a Build Slot

DETAILS

> 15 kW DC Generator
> 48V
> 0.85 Gal/hour fuel consumption
> Weight: 336lbs
> Stainless steel case
> Sound deadening to 65db at 10’
> Cooling circuit used from motor systems
> Dimensions 25“ H x 33” L x 23” W
> Bulkhead mounted Power Unit

INCLUDES

> Display intergration
> Power Unit
> Cooling for motor in case
> Wiring harness
> Mounting feet

Charge 15 walkthrough

A look around the 15 kW unit: the display and controls, where the fuel, power, exhaust and coolant lines connect, and what you see when each service panel comes off.

Thinking about a generator for your conversion? See how it fits with the rest of the system on our hybrid propulsion page.
